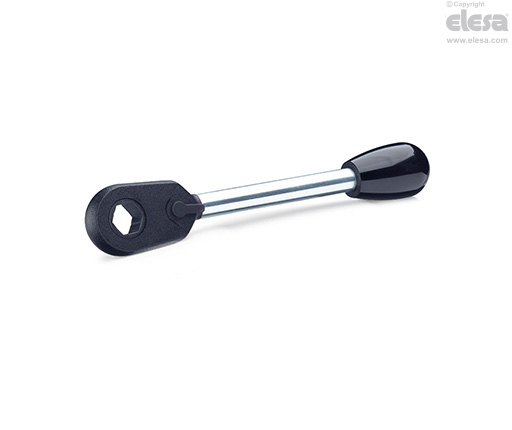

GN 316 Ratchet spanners

Steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Black-oxide steel, hardened steel insert.

Lever arm

AISI 303 stainless steel, sandblasted matte finish.

Handle

I.222 in phenolic based (PF) Duroplast, black colour, glossy finish.

Standard executions

GN 316-V: insert with square hole.

General information

Features and applications

GN 316 ratchet spanners are used for assembly and repair work. They can also be used for fixed applications on machines and equipment. The positioning of the reversing lever sets ratchet spanners action: clockwise, anticlockwise or fixed action. By turning the arm in the opposite direction the insert turns freely allowing a comfortable clamping action.

The inserts can be interchanged easily and supplied individually.

GN 316 - Ratchet spanners
Other executions

Special executions on request

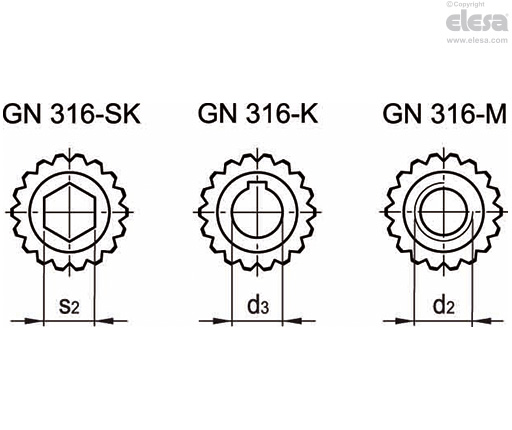

  • GN 316-SK: insert with hexagonal hole.
  • GN 316-K: insert with keyway.
  • GN 316-M: insert with threaded hole.
  • Arms in different lengths.
GN 316 - Ratchet spanners
