FC-M12x1 Connector cable M12x1

For CFSQ, CFSW, EBR-SWM and EBR-SWB

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Standard executions

Polyamide based (PA) technopolymer connector with housing and contact holder.

  • FC-M12x1-P4: 4 pole M12x1 female axial connector. Cable with sheath in PVC CEI 2022, black colour. Nickel-plated brass nut.
  • FC-M12x1-P8: 8 pole M12x1 female axial connector. Cable with sheath in PVC, black colour, UL/CSA STYLE type. AISI 316 stainless steel nut.

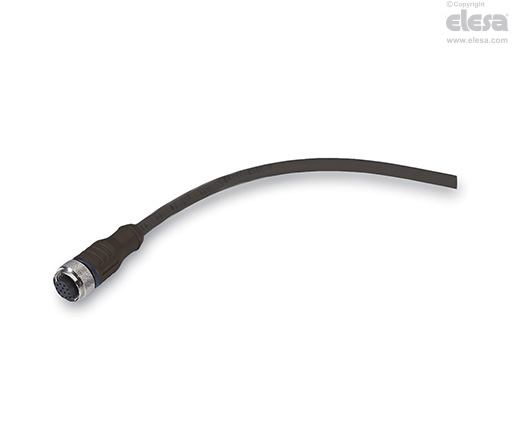

ConnectorFC-M12x1-P4FC-M-12x1-P8
Conductors cross-section4x0.34mm28x0.33mm2
Maximum applicable voltage250V30V
Maximum current4A2A
Isolation resistance≥100MΩ 500VDC≥100MΩ 500VDC
Working temperature-25°C, +70°C-15°C, +70°C
Protection classIP67 *IP67 *

* With the connector properly screwed

General information

Compatibility

Electromechanical products with 4 and 8 pole male connector output.

  • Hinges with built-in safety switch CFSQ.
  • Hinges with built-in safety multiple switch CFSW.
  • Handle with monostable electrical switch EBR-SWM.
  • Handle with bistable electrical switch EBR-SWB.
Other executions

Special executions on request

Extensions with cables in different lengths.
