GN 2342 Assembly pins

Stainless steel

Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Standard executions

AISI 304 stainless steel pin and countersunk-head screw with hexagon socket.

  • GN 2342-B-1: with AISI 304 stainless steel flat retaining washer.
  • GN 2342-B-2: with AISI 304 stainless steel flat retaining washer, and transversal hole for GN 1024 spring cotter pins.
  • GN 2342-E-1: with AISI 316 LHC fusion stainless steel retaining washer with eyelet.
  • GN 2342-E-2: with AISI 316 LHC fusion stainless steel retaining washer with eyelet, and transversal hole for GN 1024 spring cotter pins.
  • GN 2342-L-1: with AISI 316 LHC sintered stainless steel slotted retaining washer.
General information

Features and applications

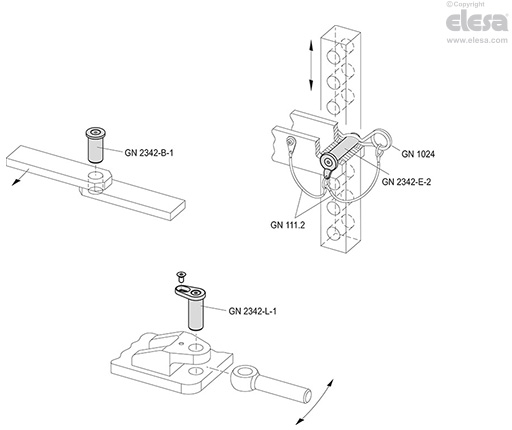

Three types of pins are available depending on the requirements:

  • GN 2342-B: for normal use with locking function;
  • GN 2342-L: clamping by means of countersunk head screws with the function of preventing loss and rotation.

The executions with suffix 2 have a transversal hole for the use of GN 1024 spring cotter pins, so as to avoid accidental loss of the pin.

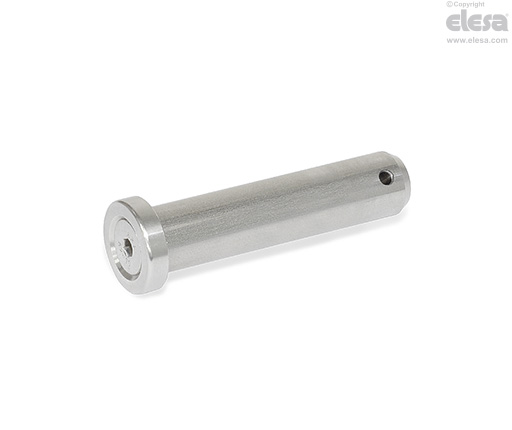

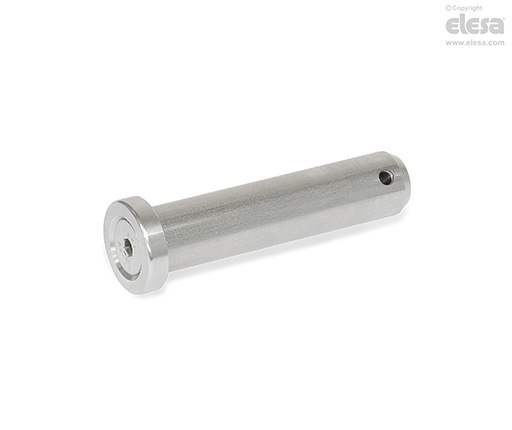

GN 2342-B-2 - With flat retaining washer and transversal hole for spring cotter
