RE.C7-G Twin-castors for general use

Vulcanised rubber coating

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Covering

Grey anti-trace rubber.

Wheel centre body

Polypropylene-based (PP) technopolymer.

Rolling action

Hub with pass-through hole.

Turning plate bracket

Electrolytically zinc-plated steel sheet bracket.

The presence of a double ball race and direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability.

Front-actuated brake

Total brake that locks rotation of the wheel and the technopolymer bracket.

The optimised dimensions and the retractable pedal ensure minimal space occupied and maximum actuation ease.

Standard executions

  • SBL-G:

turning plate bracket, without brake.

  • SBF-G:

turning plate bracket, with brake.

  • CBL-G:

turning plate bracket and threaded centre pin, without brake.

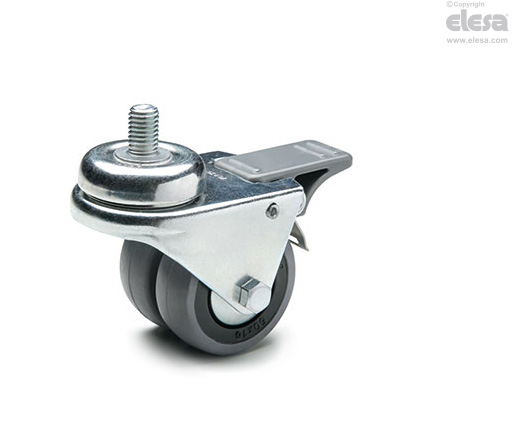

  • CBF-G:

turning plate bracket and threaded centre pin, with brake.

General information

Environmental conditions

The twin castors RE.C7-G are suitable for use in humid environments and in the presence of medium-aggressive chemical environments; use in environments with the presence of organic, chlorinated solvents, hydrocarbons and mineral oils is not recommended.
