GN 464.2

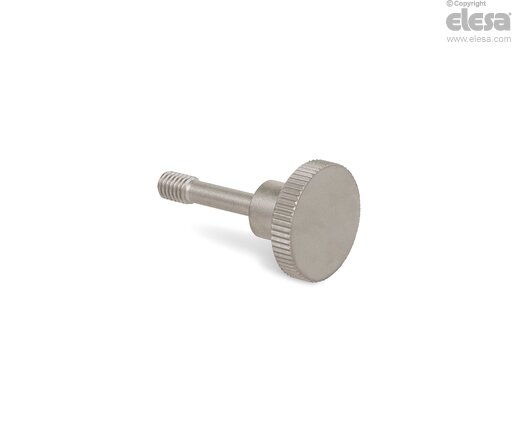

Knurled knobs
With anti-slip stud, steel or stainless steel
Specifications
Specifications
Steel
- Property class 5
- Precision-turned visible surface
- Zinc-plated, blue passivated ZB
AISI 303 stainless steel NI
Sandblasted matte finish
Information
Features and applications
GN 464.2 knurled knobs are used, for example, for fastening cover panels. The pin d4 is pull-out resistant. Instead of the pass-through hole, a second thread d1 is required, possibly with a corresponding hole d5.
There are multiple assembly options, depending on the design and the required locking thickness a1 ... a3 for the cover, as shown.
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
