GN 2344 Fixing plates

Stainless steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Standard executions

  • GN 2344-E: with eyelet, made out of AISI 316 LHC fusion stainless steel.
  • GN 2344-L: with slot, made out of AISI 316 LHC sintered stainless steel.
General information

Features and applications

GN 2344 fixing plates can be used in different types of applications.

GN 2344-E execution is commonly used in connection with the retaining cables GN 111.2 or the ball chains GN 111 to prevent the loss of fixing components.

GN 2344-L execution allows the axial and radial fixing of pins and eye screws.

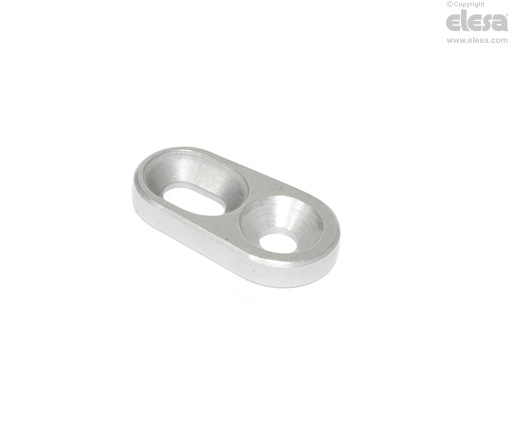

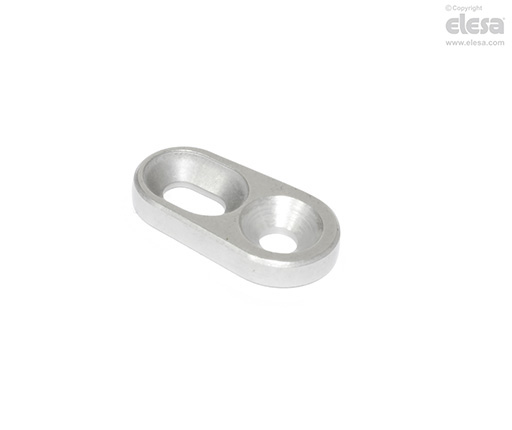

GN 2344-L - With slot, made out of AISI 316 LHC sintered stainless steel
