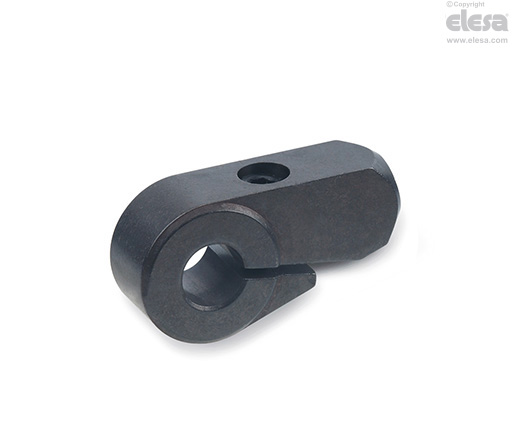

GN 150 - GN 150.5 Split hubs

Steel or stainless steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Standard executions

  • GN 150: black-oxide sintered steel.Cylindrical head screw, black-oxide steel hexagon socket.
  • GN 150.5: AISI 316L sintered stainless steel.Cylindrical head screw, AISI 304 stainless steel hexagon socket.
General information

Features and applications

GN 150 and GN 150.5 split hubs can be fitted easily to spindles and require no prior machining. The hub can be oriented to the required position.

Spindle tolerance should be ≤ h11.

For lever arms with handles to assemble on GN 150 and GN 150.5 split hubs, see BL.366 - BL.368, BL.666 - BL.668.
