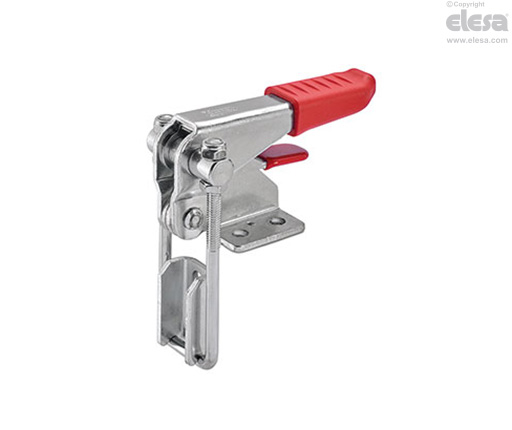

MTD-S-SST Latch clamps

with folded base and anti release lever, stainless steel




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

AISI 304 stainless steel.

Rivets

AISI 304 stainless steel.

Pulling hook

Perpendicular to clamping arm, AISI 304 stainless steel.

Oscillating pin and nuts

AISI 303 stainless steel.

Handle

Polyurethane, red colour.

Anti release lever

AISI 303 stainless steel

Lever anti-release covering

Polyvinylchloride (PVC).

Spring

AISI 302 stainless steel.

General information

Features and applications

Anti-release lever to prevent accidental opening in the presence of strong vibrations. All articulated joints are lubricated with special grease. MTD-S-SST clamps ensure tight closing of any cover. The position of the pulling hook can be adjusted in length according to the specific applications.

MTD-S-SST - Latch clamps
Accessories

Accessories on request

TRU: U-shaped pulling hooks of various dimensions.
