BEL-MF Level bubbles

Ganter Norm GN 2277

with mounting flange



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Standard executions

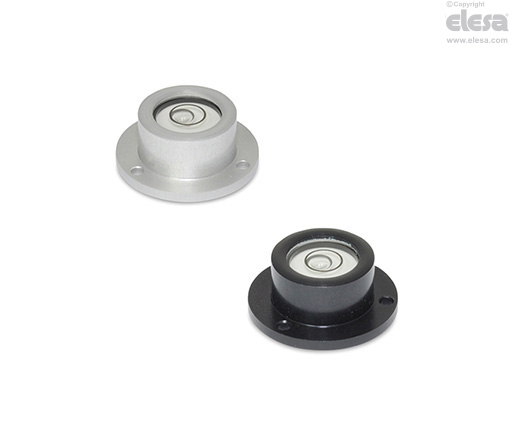

  • BEL-MF-AN-A: anodised aluminium body natural colour, rear mounting flange.
  • BEL-MF-AN-B: anodised aluminium body natural colour, front mounting flange.
  • BEL-MF-ANB-A: anodised aluminium body black colour, rear mounting flange.
  • BEL-MF-ANB-B: anodised aluminium body black colour, front mounting flange.

See Bull's eye levels and screw-on levels technical data.

Fluid housing

Transparent polyamide based technopolymer.

Contrast fluid

K: colourless.

Sensitivity of the bull's eye level

# 30: movement of the bubble by 2 mm for an inclination of the body of 30 angle minutes with respect to the horizontal surface.

Bottom insulation

Hemihydrate gypsum.

General information

Features and applications

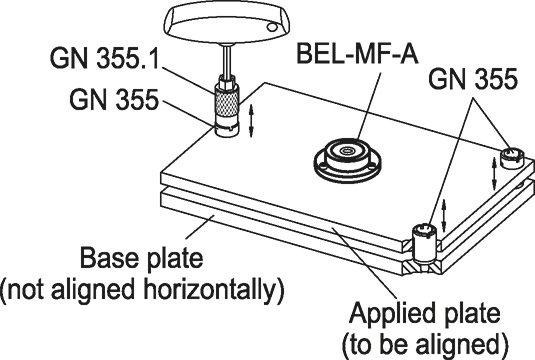

BEL-MF bull's eye levels are used to control the horizontal positioning of jigs, machines, devices, equipment and instruments.

The alignment with respect to the reference surface or to the contact surface is reached when the bubble is in the center of the circular marking.

BEL-MF - Bull
