GN 51B T-Nuts

Steel or stainless steel, for aluminum profiles (B-Modular System)

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Types

  • Type N: without increased torque
  • Type B: with increased torque

Steel zinc plated, blue passivated     SZ

Stainless steel, plain finish     NB

General information

Features and applications

T-slot nuts GN 51B fasten attachments and accessories in the slot of aluminum profiles.

With type B, the increased torque in the nut thread ensures that the required 90° turn during installation or removal of the bolt is always reliably transmitted and the T-slot nut is aligned crosswise or lengthwise to the slot.

The connection is conductive.

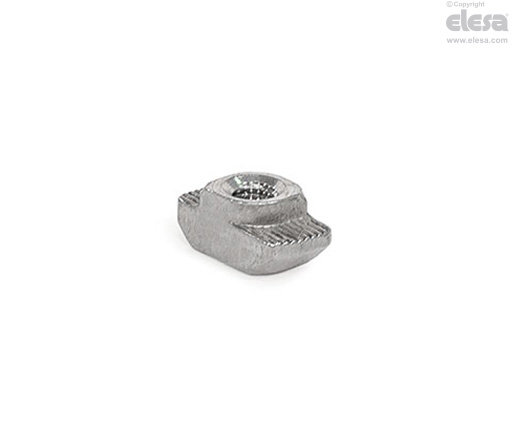

GN 51B-N-NB - Without increased torque, stainless steel
