GN 51B T-Nuts

Steel or stainless steel, for aluminum profiles (B-Modular System)

Technical datasheet

Select type

GN 51B-N-SZ

Without increased torque, steel

GN 51B-N-NB

Without increased torque, stainless steel

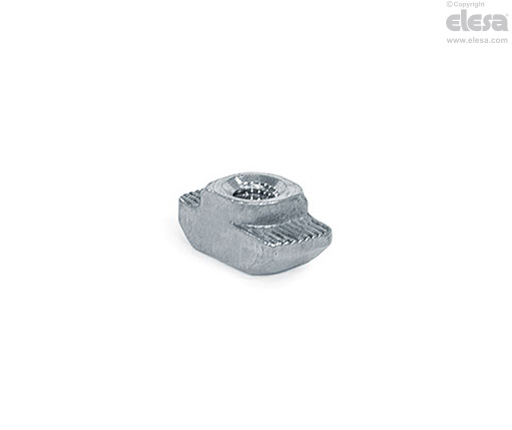

GN 51B-B-SZ

GN 51B-B-SZ

T-Nuts

With increased torque, steel

GN 51B-B-NB

With increased torque, stainless steel

Select item

Technical specifications

Scroll horizontally

Main specifications
General information

Main specifications

Types

Type N: without increased torque

Type B: with increased torque

Steel zinc plated, blue passivated SZ

Stainless steel, plain finish NB

General information

Features and applications

T-slot nuts GN 51B fasten attachments and accessories in the slot of aluminum profiles.

With type B, the increased torque in the nut thread ensures that the required 90° turn during installation or removal of the bolt is always reliably transmitted and the T-slot nut is aligned crosswise or lengthwise to the slot.

The connection is conductive.

GN 51B-B-SZ - With increased torque, steel
