RMS-P Flat rectangular retaining magnets

with threaded pin

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Zinc-plated steel threaded pin..

No-slip coating

Thermoplastic elastomer (TPE), hardness 80 shore A.

Standard execution

(NdFeB) Neodymium-iron-boron retaining magnet, for temperatures up to 80°C.

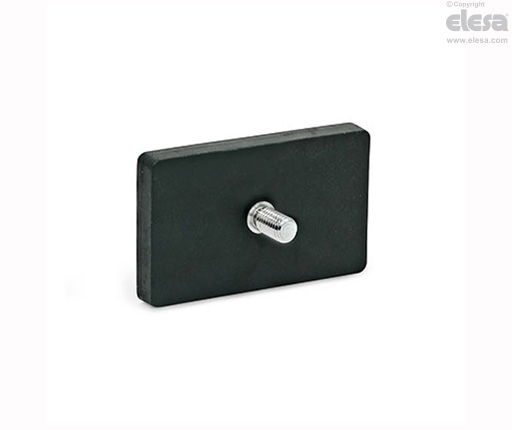

  • RMS-P-ND-1-BK: with no-slip coating in RAL 9011 black colour, with threaded pin.
  • RMS-P-ND-1-WT: with no-slip coating in RAL 9016 white colour, with threaded pin.
  • RMS-P-ND-2-BK: with no-slip coating in RAL 9011 black colour, with two threaded pins.
  • RMS-P-ND-2-WT: with no-slip coating in RAL 9016 white colour, with two threaded pins.

Retaining magnets technical data.

General information

Features and applications

RMS-P flat rectangular retaining magnets are shielded magnetic systems with high performances and moderate overall dimensions.

The elastomer surface increases the friction coefficient when lateral retaining forces are present, giving a better adhesion.

These magnets are preferably used for sensitive surfaces.
