GN 817.2 Indexing Plungers

with or without rest in retracted position, steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Threaded body and locking nut

Black-oxide steel.

Plunger

Black-oxide steel with hardened end.

Suggested tolerance for matching hole = H7.

Knob

High-resilience polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

  • GN 817.2-B: without rest position, without locking nut.

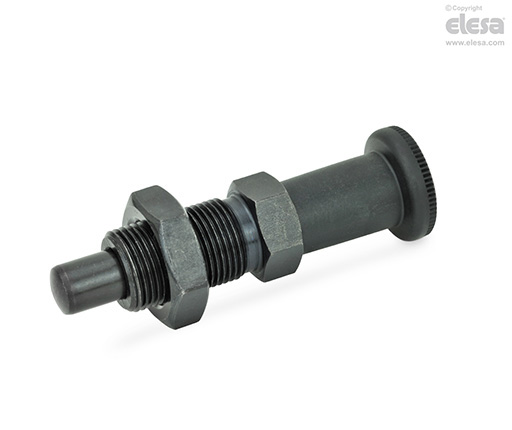

  • GN 817.2-BK: without rest position, with locking nut.
  • GN 817.2-C: with rest position, without locking nut.
  • GN 817.2-CK: with rest position, with locking nut.
General information

Features and applications

GN 817.2 indexing plungers offer the following advantages: two different strokes (l1) for every plunger diameter (d1), compact knobs, retracted position mechanism (GN 817.2-C) inside the knob.

The main difference with indexing plungers GN 817 is provided by an elongated shape of the knob.
