GN 611
Bolt spring plungers
Long stroke, steel or stainless steel
Main specifications
Standard executions
Black-oxide steel threaded body, partially covered with PFB polyamide coating (see Technical data), blue colour, for instant thread locking.
Plunger in hardened, case-hardened, and black-oxide steel:
- GN 611-L: stainless steel normal end-force spring.
- GN 611-LS: heavy end-force steel spring, threaded body with two laser engraved lines

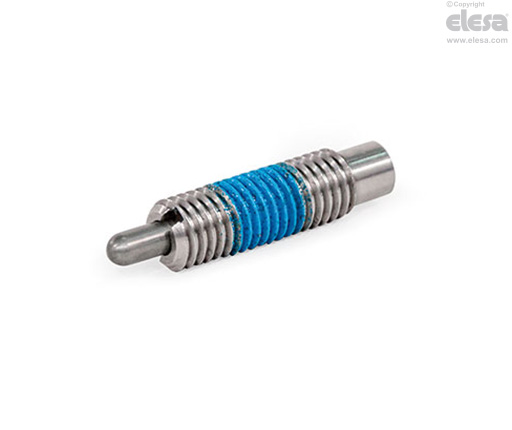

AISI 303 stainless steel threaded body, partially covered with PFB polyamide coating (see Technical data), blue colour, for instant thread locking. AISI 303 stainless steel plunger:
- GN 611-LN: stainless steel normal end-force spring.
- GN 611-LSN: heavy end-force steel spring, threaded body with two laser engraved lines
Working temperature
From -50°C to +90°C.
General information
Features and applications
GN 611 threaded bolt spring plungers are normally used for machining sheets, as ejectors for push-on or push-off operations or as a cushion.
Other executions
Special executions on request
GN 611-L-MVK and GN 611-LS-MVK: thread locking by means of micro-encapsulated red patch (see Technical data). Working temperature: from -40°C to +170°C.
