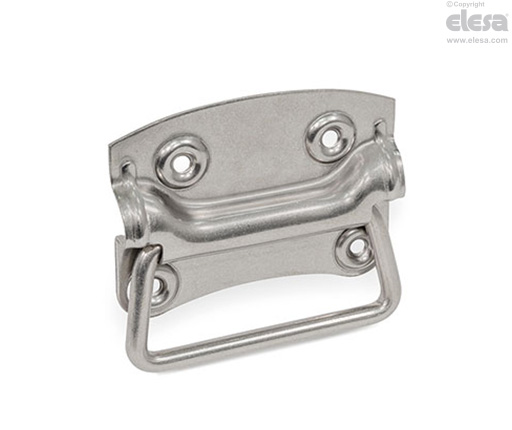

GN 3136 Folding handles

Steel or stainless steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Standard executions

Holes for countersunk screws     A

  • GN 3136-ST: zinc-plated steel, blue passivated.
  • GN 3136-NI: AISI 304 stainless steel, polished finish.
General information

Features and applications

GN 3136 folding handles are used to open drawers or lift boxes and containers. During use, the revolving handle hits the sheet metal housing at approximately 90° and then returns to its stop position by gravity.

Thanks to their simple construction, the moulded and folded parts can have greater tolerances. Therefore, suitable compensation measures must be taken into account in the design.
