GN 4490

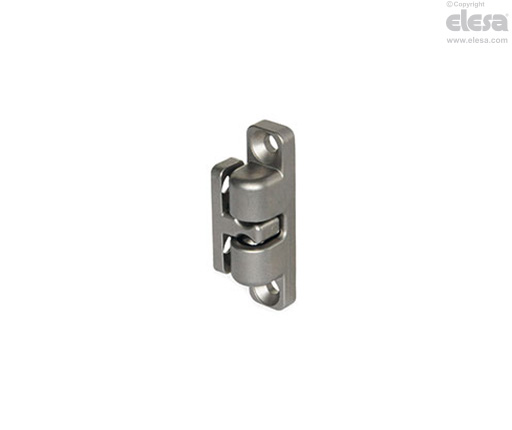

Ball-shaped door lock
Die-cast zinc alloy or AISI 316 LHC stainless steel.
Main specifications
Standard executions
Pass-through holes for countersunk head screws.
- GN 4490-ZD-1: die-cast zinc alloy, normal end-force spring in AISI 301 stainless steel.
- GN 4490-ZD-2: die-cast zinc alloy, reinforced end-force spring in AISI 301 stainless steel.
Surface finish index:
- SR: RAL 9006 grey epoxy resin coating, matte finish.
- SW: RAL 9005 black epoxy resin coating, matte finish.
- GN 4490-NIK-1: AISI 316 LHC stainless steel, normal end-force spring in AISI 316 Ti stainless steel.
- GN 4490-NIK-2: AISI 316 stainless steel LHC, reinforced end-force spring in AISI 316 Ti stainless steel.
Ball containment body
Acetal resin based (POM) technopolymer.
Balls
- AISI 304 stainless steel (Type ZD).
- Ceramica, nitruro di silicio, colore nero (versione NIK).
General information
Features and applications
GN 4490 ball-shaped door locks are generally used for closing panels and doors that must be opened and closed frequently with ease.
They consist of a jamb body, equipped with balls and springs, and a door body that engages laterally or frontally.
The installation can be oriented as required.
Other executions
Special execution on request
Epoxy resin coatings in various colours.
