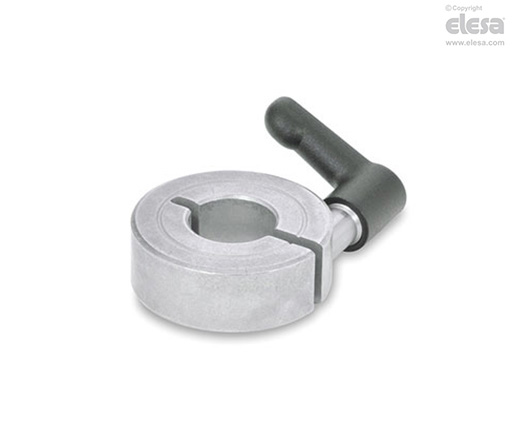

GN 706.4
Set collars
with clamping kit, aluminium, steel or AISI 316 stainless steel
Main specifications
Standard executions
- GN 706.4-AL: natural aluminium.
- GN 706.4-ST: sintered black-oxide steel.
- GN 706.4-NI: Sintered AISI 316LHC stainless steel.
Adjustable handle
Die-cast zinc alloy
- Epoxy resin coating
- Black, RAL 9005, textured finish
Insert / retaining screw
AISI 303 stainless steel
General information
Features and applications
GN 706.4 set collars can be easily and securely fastened by reducing the notch height using a clamping kit, thus acting as end stops, for example.
This version offers significant advantages, especially for applications that require new set collar positions.
The d3 thread is designed as a pass-through hole for measurement d1 = 32 and 36; as a blind hole starting from measurement d1 = 42.
