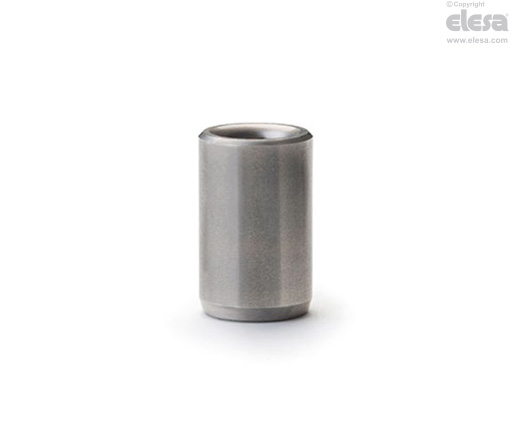

DIN 179 Guide bushings

Steel or stainless steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Steel

Hardened steel (62±2 HRC).

Ground coupling dimension d1 / d2.

Stainless steel AISI 440B     NI

Hardened stainless steel (55 +4 HRC).

Ground coupling dimension d1 / d2.

General information

Features and applications

d2 external diameter n6 tolerance assures a perfect clamping in the mounting holes in H7 tolerance.
