LSX.A Levelling mount

Technopolymer base, steel stem

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Articulated stem

Threaded zinc-plated steel with adjusting hexagon.

Standard executions

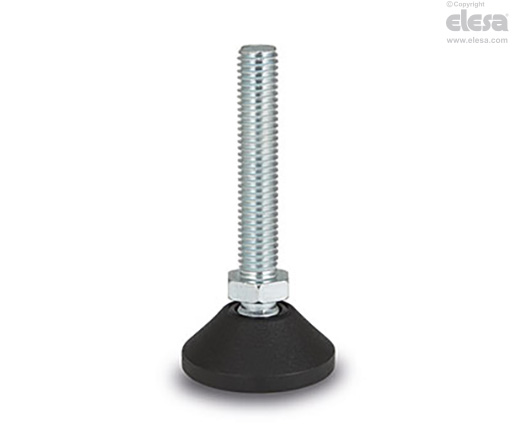

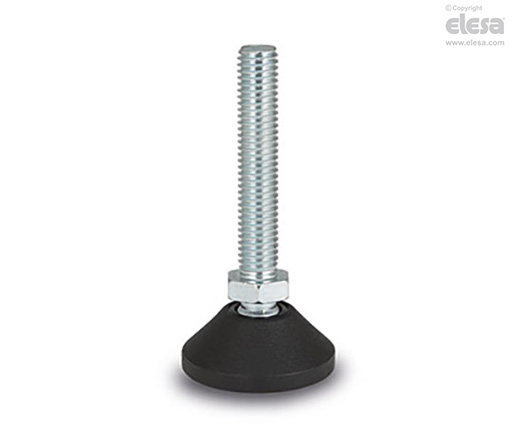

  • LSX.A: without no-slip disk.
  • LSX.A-AS: with SBR rubber no-slip disk, assembled to the base.
General information

Features

The static load values in the table below refer to the resistance to a load applied on the axis of the levelling element.

Under common working conditions, any lateral or angular stress that may affect the no-slip disk resistance must also be taken into consideration.

Under particularly severe working conditions or on adherent surfaces the LSX.A-AS execution with SBR rubber no-slip disk may not be optimal. In these case see also LS.A-AS.

Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
