rest in retracted position, steel or stainless steel
Standard executions
- GN 722.3-L: with lever in left retracted position.
- GN 722.3-R: with lever in right retracted position.
Index for material and finish:
- A4: body and lever made out of cast AISI 316 stainless steel for welding, AISI 316 stainless steel plunger, AISI 316Ti stainless steel spring.
- SW: body made out of cast zinc-plated steel, epoxy resin coating, RAL 9005 black colour, matte finish, cast zinc-plated steel lever, zinc-plated steel plunger, AISI 301 stainless steel spring.
- ZB: body made out of cast zinc-plated steel, cast zinc-plated steel lever, zinc-plated steel plunger, AISI 301 stainless steel spring.
Features and applications

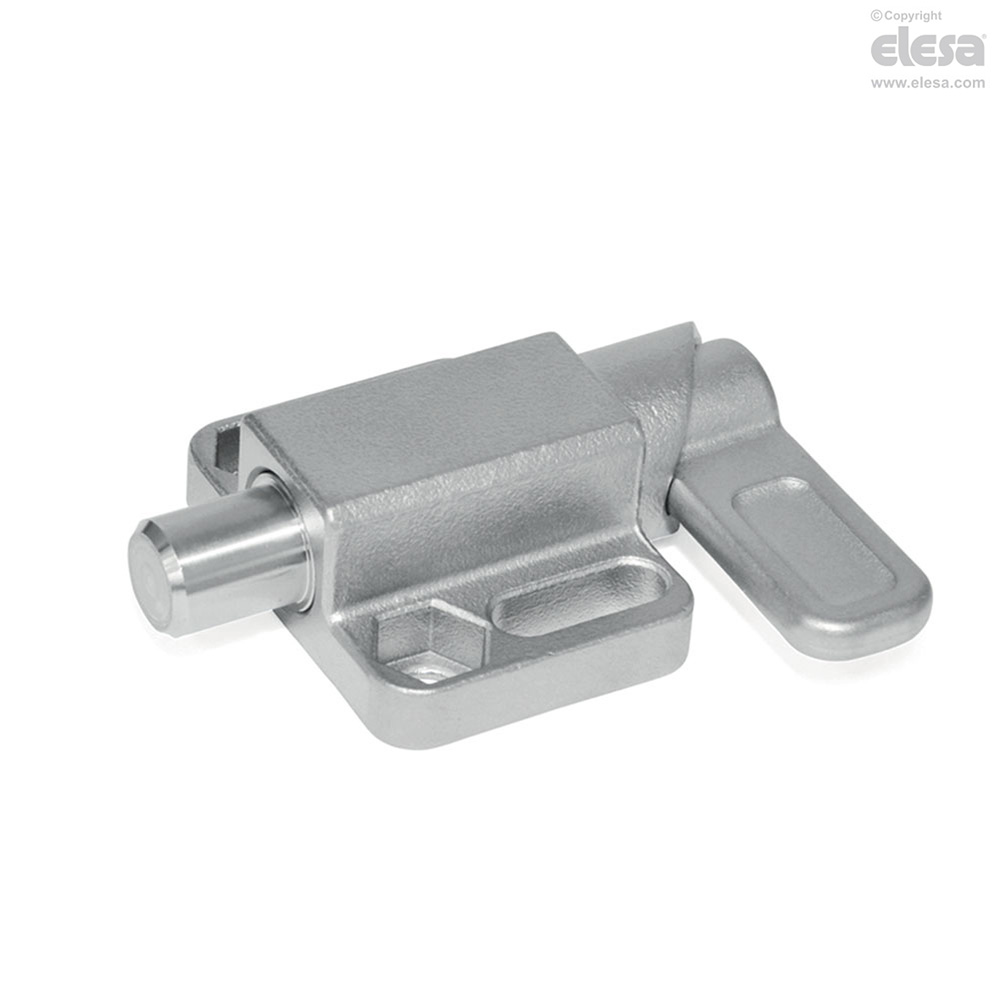

GN 722.3 lever indexing plungers are used when the plunger must be retracted quickly.
By rotating the lifting lever by 180°, a notch keeps the plunger in the retracted position.
The very small dimensional tolerances guarantee the necessary functional safety even in case of dirt.
