GN 612.8
Locking indexing plungers
rest in retracted position, zinc alloy
Main specifications
Threaded body
Die-cast zinc alloy with protective surface treatment.
Plunger
Zinc-plated steel.
Locking nut
Black-oxide steel.
Lever
High-resilience polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions

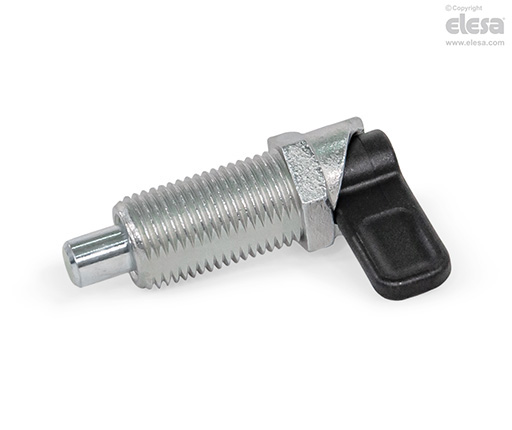

- GN 612.8-A: without locking nut.
- GN 612.8-AK: with locking nut.
General information
Features and applications
GN 612.8 lever indexing plungers are used when the plunger must be retracted quickly.
By rotating the lifting lever by 180°, the plunger stops in the retracted position. The lever is kept in this position by a notch.
Accessories
Accessories
To optimize the use of GN 612.8 lever indexing plungers have been designed flanges of assembly GN 612.1.
