GN 612-NI Locking indexing plungers

rest in retracted position, stainless steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Threaded body

AISI 303 stainless steel.

Plunger

Turned and nickel-plated stainless steel.

Suggested tolerance for matching hole = H7.

Locking nut

Stainless steel.

Lever

Sintered AISI 316 LHC stainless steel.

Lever cover

High-resilience polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

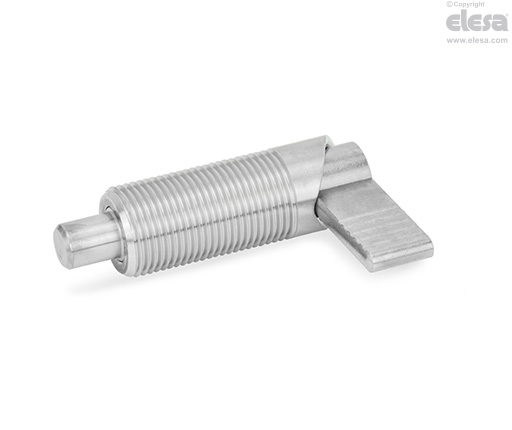

  • GN 612-A-NI: without lever cover, without locking nut.
  • GN 612-AK-NI: without lever cover, with locking nut.
  • GN 612-B-NI: with lever cover, without locking nut.
  • GN 612-BK-NI: with lever cover, with locking nut.
General information

Features and applications

GN 612-NI lever indexing plungers are used when the plunger must be retracted quickly.

By rotating the lifting lever by 180°, a notch keeps the plunger in the retracted position.
