GN 614.4 Bolt spring plungers

Smooth body, stainless steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Body

Stainless steel. Suggested tolerance for plunger housing hole d1 = H7.

Standard executions

  • GN 614.4-KU: acetal resin based (POM) technopolymer bolt, stainless steel spring with normal end-force.

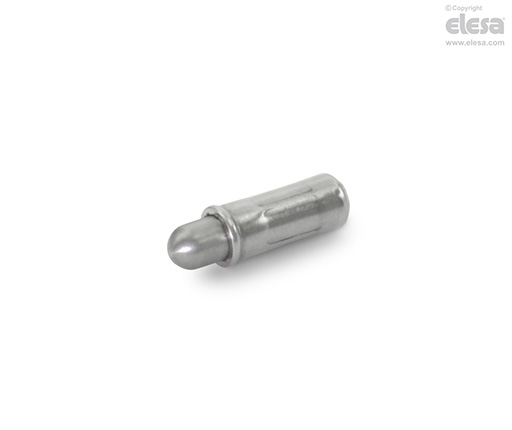

  • GN 614.4-NI: AISI 303 stainless steel bolt, stainless steel spring with normal end-force.
General information

Features and applications

GN 614.4 smooth spring plungers are normally used for push-on and push-off operations or as a cushion.
