GN 615-NI Ball spring plungers

Stainless steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Threaded body

AISI 303 stainless steel, screwdriver slotted head.

Standard executions

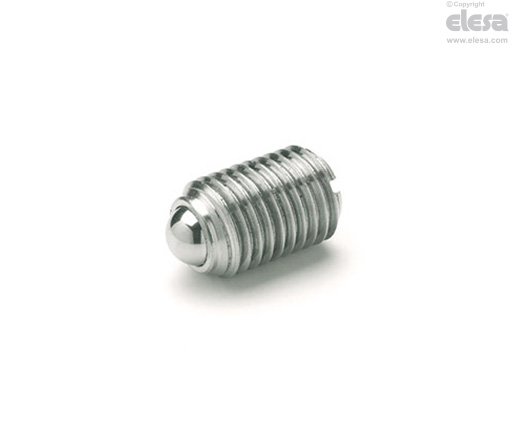

  • GN 615-KN: hardened stainless steel ball, stainless steel spring with normal end-force.
  • GN 615-KSN: hardened stainless steel ball, stainless steel spring with heavy end-force, threaded body with two laser-engraved lines.
Other executions

Special executions on request

  • GN 615-KN-MVK, GN 615-KSN-MVK: thread locking by means of micro-encapsulated red patch (see Technical data). Working temperature: from -40°C to +170°C.
  • GN 615-KN-PFB, GN 615-KSN-PFB: thread locking by means of polyamide blue coating (see Technical data). Working temperature: from -50°C to +90°C.
