GN 615 Ball spring plungers

Steel




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Threaded body

Black-oxide steel, screwdriver slotted head.

Ball

Hardened steel.

Spring

AISI 631 stainless steel.

Standard executions

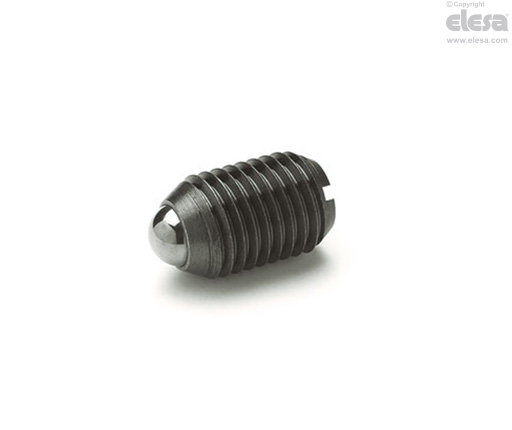

  • GN 615-K: normal end-force spring.
  • GN 615-KS: reinforced pressure spring, body with two longitudinal markings.
Other executions

Special executions on request

  • GN 615-K-MVK, GN 615-KS-MVK: thread locking by means of micro-encapsulated red patch (see Technical data). Working temperature: from -40°C to +170°C.
  • GN 615-K-PFB, GN 615-KS-PFB: thread locking by means of polyamide blue coating (see Technical data). Working temperature: from -50°C to +90°C.
