SELF-SANITISATION AGAINST BACTERIA AND FUNGI

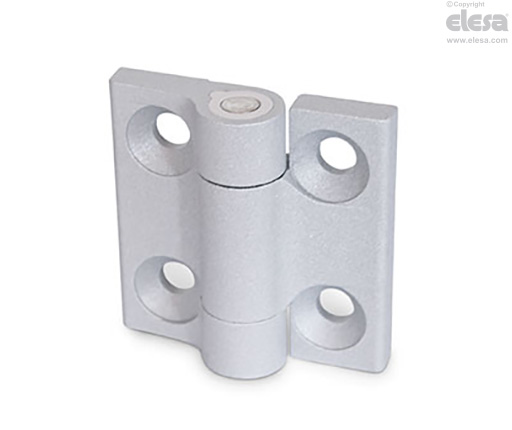

Zinc alloy

Material
Die cast zinc alloy, epoxy resin coating, black colour RAL 9005 (SW) or grey colour RAL 9006 (SR), matte finish.
Pin anchoring elements
Acetal resin based (POM) technopolymer.
Working temperature
80°C.
Spring
AISI 302 stainless steel.
Rotating pin
AISI 303 stainless steel.

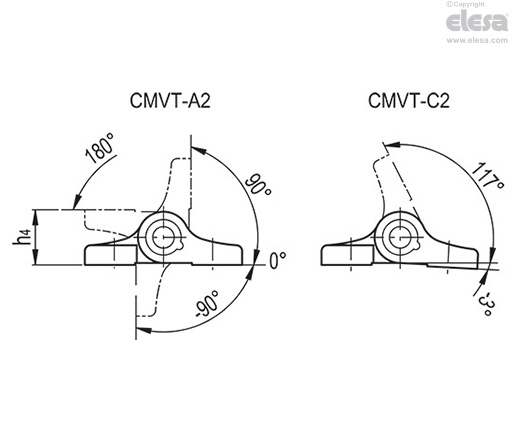

Standard executions
- CMVT-A2: detent with angle -90° / 0° / 90°/ 180° resistant torque 1 Nm.
- CMVT-C2: detent with angle 3°/ 117°, resistant torque 1 Nm.

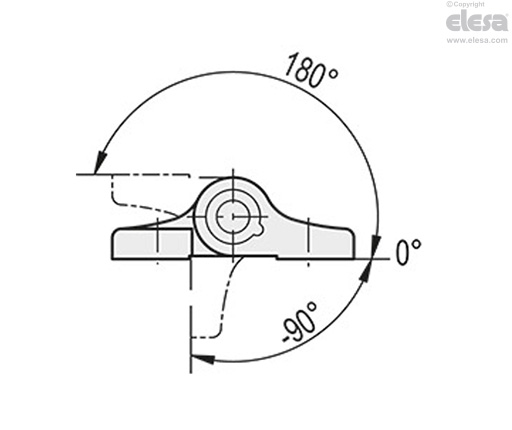

Rotation angle (approximate value)
Max rotation angle: about 270º (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

Resistant torque
The resistant torque corresponds to the torque that must be applied to free the detent hinge.
Features and applications
The internal detent device allows three different detent positions of the door depending on the execution.
This is particularly advantageous when dealing with doors that need to be frequently opened and closed for loading and unloading, maintenance or repairs.
The positioning of the detent at -3° of the CMVT-C2 ensures that the door or cover, once closed, exerts a slight pressure against the frame.
