DIN 950 Spoked handwheels

Cast iron

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Cast iron, turned and polished rim.

Standard executions

  • DIN 950-A: without handle.

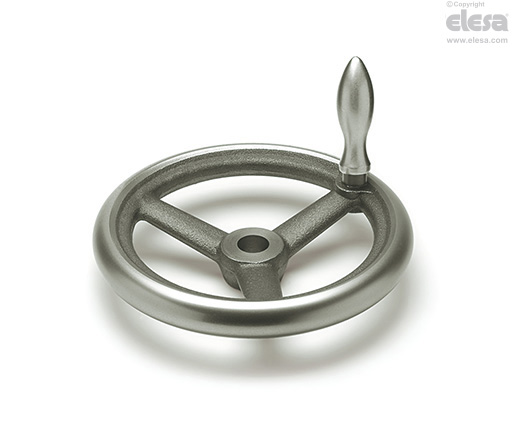

  • DIN 950-D: with revolving handle DIN 98 zinc-plated steel.

Hole index:

  • B: H7 reamed hole.
  • K: H7 reamed hole and keyway in compliance with DIN 6885/1 tolerance P9.
Other executions

Special executions on request

  • H11 square mounting hole (DIN 950-V).
  • Cast aluminium handwheels (DIN 950-AL).
  • Diameter D = 315, 400, 500 mm.
Inch sizes available on request
