DIN 468 Crank handles

Cast iron

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Cast iron, epoxy resin coating, black colour, matte finish.

Standard executions

  • DIN 468-B-D: with zinc-plated steel revolving handle DIN 98, H7 reamed hole.
  • DIN 468-B-F: with zinc-plated steel fixed handle DIN 39, H7 reamed hole.

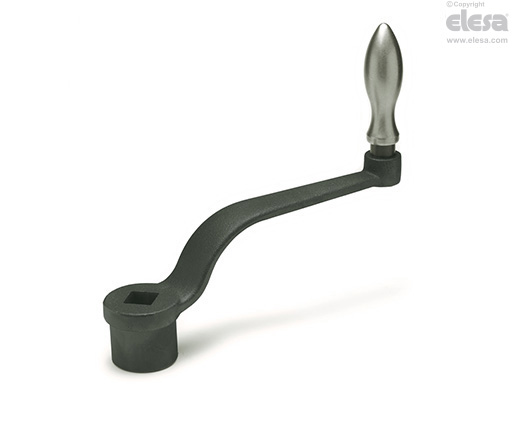

  • DIN 468-V-D: with zinc-plated steel revolving handle DIN 98, H11 square hole.
  • DIN 468-V-F: with zinc-plated steel fixed handle DIN 39, H11 square hole.
