GN 425.9 Folding handles

Stainless steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Fixing plate

AISI CF-8 stainless steel, sand-blasted finish or epoxy resin coating, matte finish.

Handle

AISI 304 stainless steel.

Retaining springs

AISI 301 stainless steel.

Standard executions

  • GN 425.9-A: plate with threaded blind holes.
  • GN 425.9-B: plate with pass-through holes for cylindrical-head screws with hexagon socket.
  • GN 425.9-C: fixing plate by means of welding.

Index for fixing plate material.

  • NI-GS: AISI CF-8 stainless steel, sand-blasted finish.
  • NI-SW: AISI CF-8 stainless steel, epoxy resin coating, matte finish (only for A and B executions).

Index for handle type:

  • 1: 90° opening.
  • 2: 90° opening. With retaining spring.
  • 3: 180° opening.
  • 4: 180° opening. With retaining spring.
General information

Features and applications

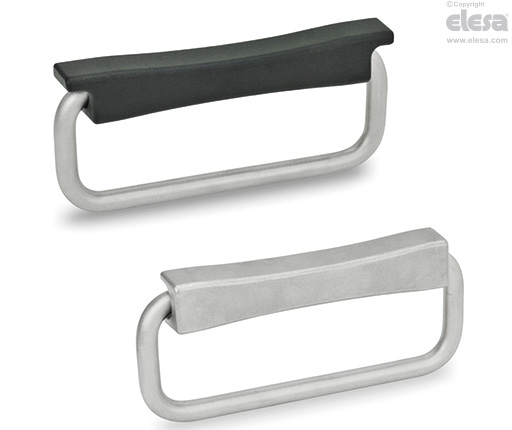

GN 425.9 folding handles are used where the handle must only protrude slightly in the rest position.

The executions 1 and 2 are suitable for side access, with a 90° limit stop.

The retaining springs of the executions 2 and 4 keep the handle in any position, facilitating access, and prevent noisy oscillations in case of vibrations in the rest position.

All components are supplied unassembled.
