IR.780 Fold-away handles

Technopolymer

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

  • IR.780: black-oxide steel pin, sintered and oxidised steel flat base for embedded mounting, black-oxide steel screw.
  • IR.780-SST: AISI 303 stainless steel pin, sintered AISI 303 stainless steel flat base for embedded mounting, AISI 303 stainless steel screw.
General information

Features and applications

Handle pivots freely during operation: a system of coaxial bushings compensates return spring load.

This series of fold-away handles has been designed for all those applications for which, owing to lack of space or for safety reasons, the handle must be folded-away once the operation has been completed.

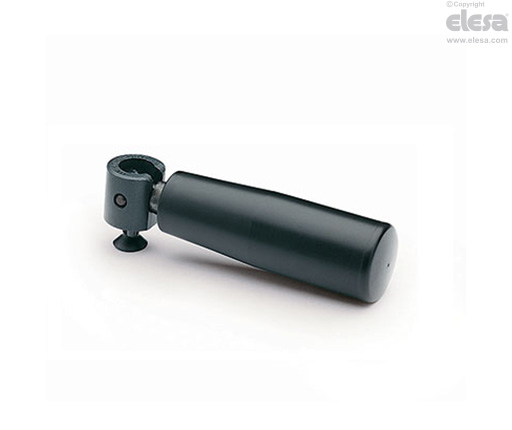

IR.780 - Steel pin and support
Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
