GN 291.1 Square linear actuators

Steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Square guide tube

Chrome-plated steel.

Worm screw with trapezodial threading

AISI 303 stainless steel.

Slider

Brass.

Closing end-caps

Polyamide based (PA) technopolymer.

Standard executions

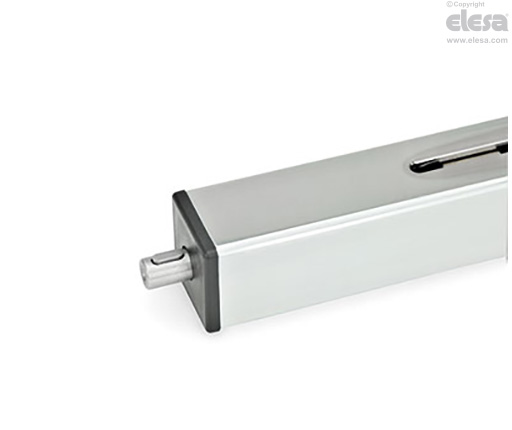

  • GN 291.1-R1: right threaded screw, projecting on one end.
  • GN 291.1-L1: left threaded screw, projecting on one end.
General information

Features and applications

GN 291.1 linear actuators can generally be used with high tightening torques.

The assembly of GN 291.1 linear actuators can be made by using the different types of connecting clamps.

Other executions

Special executions on request

  • GN 291.1-R2: right threaded screw, projecting on both ends.
  • GN 291.1-L2: left threaded screw, projecting on both ends.
  • Linear actuators with different lengths.
  • Guide tubes with laser-engraved precision graduations.
  • Position indicators DD52R / DD51 installation kits.
