GN 743.10 Oil level sight glasses for high temperatures

AISI 316L stainless steel




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Types

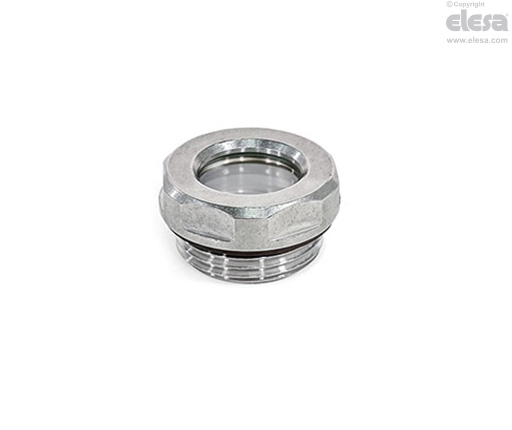

  • Type B: without reflector.
  • Type AK: with reflector made out of technopolymer (PSU polysulfone).
  • Type AN: with stainless steel AISI 316L reflector.

Body

Stainless steel AISI 316L

Window

Security glass (ESG)

Snap ring (type B)

Stainless steel, non-rusting, 316Ti

Seals

Rubber FPM (Viton®)

Identification by not black finish of the seal

Temperature resistant up to 180 °C

General information

Features and applications

The robust, scratch-proof glass of the stainless steel oil sight glass GN 743.10 is sealed at the edges by an O-ring. The sealing effect is independent of the axial pressure. The sight glasses can also be used in particularly aggressive environments thanks to the materials used.

The outside diameter of the oil level sight glasses with recessed hex matches the mounting holes for pipe fittings according to DIN 3852.

The outer seal is embedded in a radial recess. In addition, this groove prevents the seal from being ejected when the sight glass is tightened.

Stainless steel oil level sight glasses GN 743.10 can be used on pressurized tanks. Tests regarding maximum pressure are available.

Assembly Instructions

For mounting on walls of less than 4 mm thickness, please use a mounting nut GN 7430 .

Accessory

Accessory

Mounting Nuts GN 7430 .

On request

On request

Seals of EPDM
