GN 918.7
Cam locking levers
Locking downwards, stainless steel
Main specifications
Lever
AISI 303 stainless steel, sand-blasted matte finish.
Handle
Type PLX. Phenolic based (PF) Duroplast, black colour, glossy finish.
Washer
AISI 630 hardened stainless steel.
Helical cam
Nickel-plated AISI 303 stainless steel.
Reference bushing (executions GN 918.7-KVS, GN 918.7-GVS, GN 918.7-SKS)
Hardened stainless steel.
Threaded bushing (executions GN 918.7-KVB, GN 918.7-GVB, GN 918.7-SKB)
Hardened stainless steel.
Standard executions

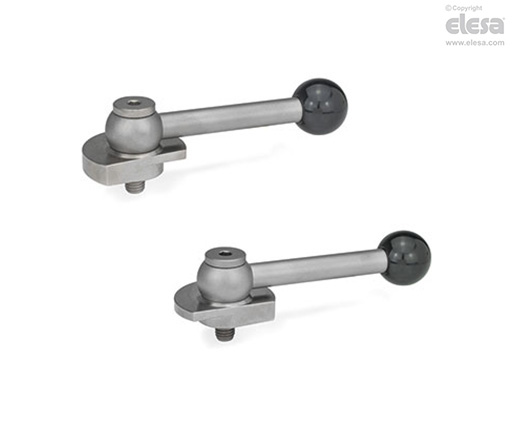

AISI 630 hardened stainless steel threaded pin:
- GN 918.7-KV: with angled lever
- GN 918.7-GV: with straight lever.
- GN 918.7-SK: with hexagon.
AISI 304 stainless steel cylindrical head screw on the operator side:
- GN 918.7-KVS: with angled lever
- GN 918.7-GVS: with straight lever.
- GN 918.7-SKS: with hexagon.
AISI 304 stainless steel cylindrical head screw on the rear side:
- GN 918.7-KVB: with angled lever
- GN 918.7-GVB: with straight lever.
- GN 918.7-SKB: with hexagon.
Suffix for the direction of the locking action:
- L: anticlockwise locking action.
- R: clockwise locking action (version shown in the drawings).
General information
Features and applications
The GN 918.7 cam locking levers have a circumferential wedge-shaped surface and enable the achievement of high locking grades with fast and safe locking-unlocking movements.
Thanks to the reduced inclination angle (cam angle), the system is self-locking.
The lever is connected to the cam by means of a toothed element providing precise positioning while releasing the screw.
The washer eliminates the need for expensive items with female threadings and therefore the screw can be used directly on T-nuts for connection plates.
