DIN 950 (inch sizes) Spoked handwheels

Cast iron

Select type

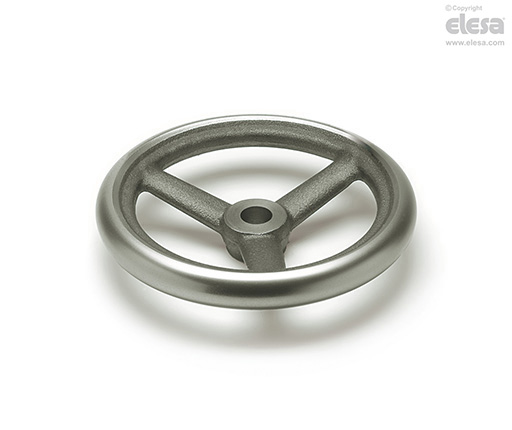

DIN 950-A (inch sizes)

DIN 950-A (inch sizes)

Spoked handwheels

Without handle

DIN 950-D (inch sizes)

DIN 950-D (inch sizes)

Spoked handwheels

Revolving handle

Select item

Technical specifications

Scroll horizontally

Main specification
Other executions

Main specification

Material

Cast iron, turned and polished rim.

Standard executions

Standard reamed hole.

DIN 950-A: without handle.

DIN 950-D: with revolving handle DIN 98 zinc-plated steel.

Other executions

Special executions on request

H11 square mounting hole (DIN 950-V).

Reamed hole and keyway in compliance with ANSI B17.1-1967 tolerance.

Cast iron handwheels (DIN 950-GG).

Diameter D = 12.40 - 15.75 - 16.69 (315, 400, 500 mm).

Other executions on request

Standard metric holes.
