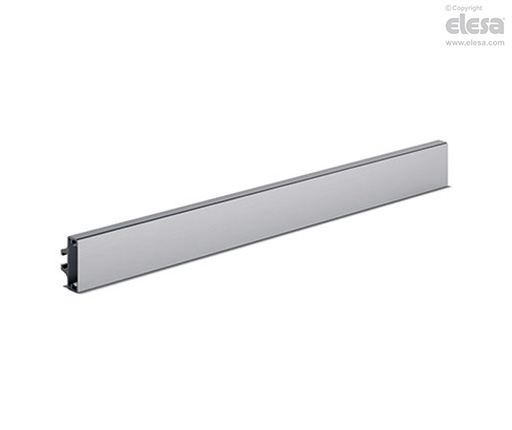

GLF Linear guide rails

Flat profile, stainless steel, PEEK

Technical datasheet

Select item

Technical specifications

Scroll horizontally

Main specifications
General information
Accessories

Main specifications

Guide profile

AISI 304 stainless steel with technopolymer coating (PEEK), grey colour.

Bracket

Anodised aluminium.

General information

Features and applications

GLF side guides are generally used to laterally guide bundles of heat-shrinkable polyethylene film on conveyor belts. The PEEK coating guarantees minimal rolling resistance of the product. Suitable for use at high temperatures.

Minimum coating thickness 40 μ, maximum 50 μ.

Supplied in bars of 1500 or 3000 mm length.

GLF - Linear guide rails

Accessories

Accessories on request

GGLF: linear guide joint.

TGLF: end cap.

BDG: connecting plate for guides.

MPG-P: guide fixing pins.

MPG-V: hammer head screw.

PGL-1: separation block for side guides.
