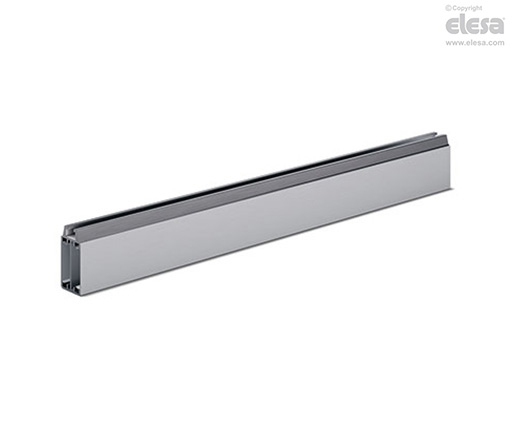

GCF Linear central guides

Flat profile, stainless steel, PEEK



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Guide profile

AISI 304 stainless steel with technopolymer coating (PEEK), grey colour.

Bracket

Anodised aluminium.

General information

Features and applications

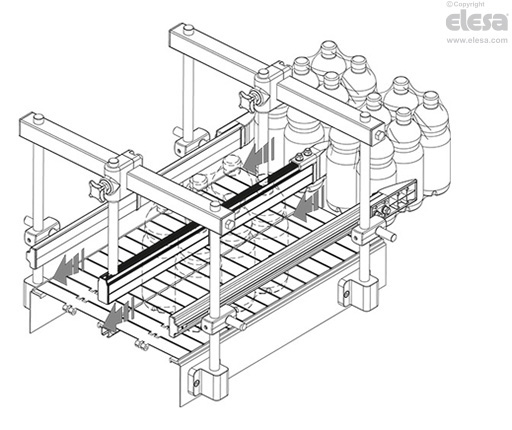

GLF central guides are generally used to laterally guide bundles of heat-shrinkable polyethylene film on conveyor belts. The PEEK coating ensures minimal rolling resistance of the product and is also suitable for high-temperature applications.

Minimum coating thickness 40 μ, maximum 50 μ.

Supplied in bars of 1500 or 3000 mm length.

GCF - Linear central guides
Accessories

Accessories on request

  • BDG: connecting plate for guides.
  • TGLF: closing cap for guides.
  • GGLF: linear guide joint.
  • PGC-2: separation block for central guide.
  • MPG-V: zinc-plated steel hammer head screw.
