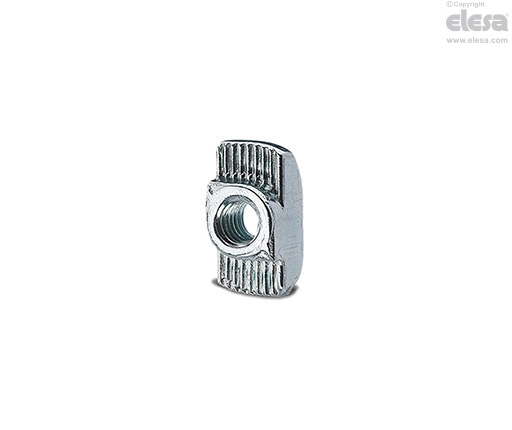

GN 505 T-Nuts

quick-insert, steel




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Standard executions

Zinc-plated steel.

  • GN 505-MB: with slightly out of shape through threading.
  • GN 505-OB: with through threading.
General information

Features and applications

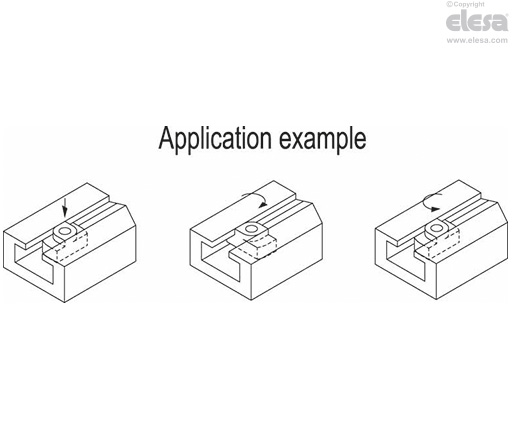

GN 505 dowels for T-slots are suitable for use on aluminium sections for quick insert. Inserting the dowel upright into the T-slot and rotating it clockwise by 90°, the toothing will insert into the profile to secure fitting. GN 505-MB, thanks to the slight deformation of the thread for higher torque, offers a more secure fitting of the dowel. To remove the dowel from the slot, rotate it anticlockwise by 90°.

GN 505 - T-Nuts
