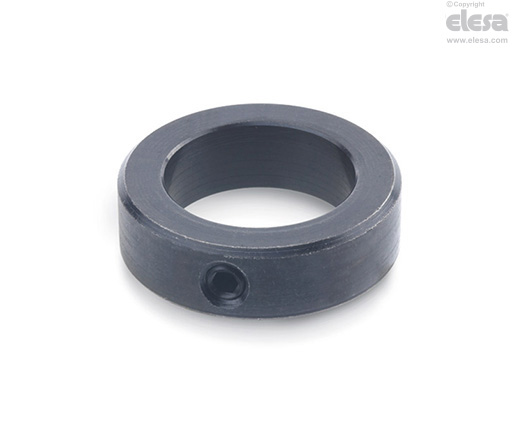

GN 705 Set collars

screw assembly, steel




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Black-oxide steel.

Standard executions

  • GN 705-A: assembly by means of grub screw with screwdriver slotted head.
  • GN 705-E: assembly by means of grub screw with hexagon socket.

Rings with d1 = 75 and 80 mm are provided with two grub screws.

  • GN 705-E-ZB: assembly by means of grub screw with hexagon socket.

Rings with d1 = 80 mm are provided with two grub screws.
