GN 918.5
Cam locking levers
Radial lock, stainless steel
Main specifications
Lever
AISI 303 stainless steel, sand-blasted matte finish.
Handle
Type PLX. Phenolic based (PF) Duroplast, black colour, glossy finish.
Washer
AISI 630 hardened stainless steel.
Eccentric cam
Nickel-plated AISI 303 stainless steel.
Reference bushing (executions GN 918.5-KVS, GN 918.5-GVS, GN 918.5-SKS)
Hardened stainless steel.
Threaded bushing (executions GN 918.5-KVB, GN 918.5-GVB, GN 918.5-SKB)
Hardened stainless steel.
Standard executions
AISI 630 hardened stainless steel threaded pin:
- GN 918.5-KV: with angled lever
- GN 918.5-GV: with straight lever.
- GN 918.5-SK: with hexagon.
AISI 304 stainless steel cylindrical head screw on the operator side:
- GN 918.5-KVS: with angled lever
- GN 918.5-GVS: with straight lever.
- GN 918.5-SKS: with hexagon.
AISI 304 stainless steel cylindrical head screw on the rear side:
- GN 918.5-KVB: with angled lever
- GN 918.5-GVB: with straight lever.
- GN 918.5-SKB: with hexagon.
Suffix for the direction of the locking action:
- L: anticlockwise locking action.

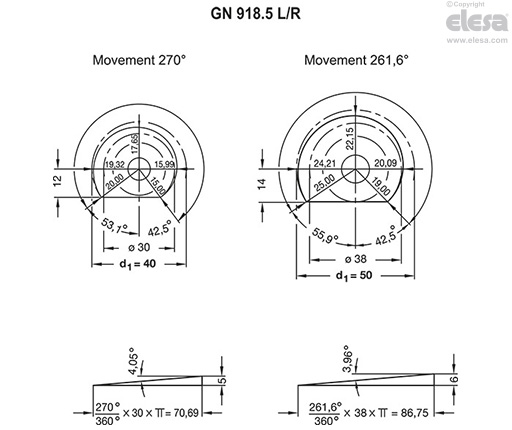

- R: clockwise locking action (version shown in the drawings).
General information
Features and applications
GN 918.5 cam locking levers allow the achievement of strong locking values with safe and fast lock-unlock movements.
The system is self-locking at any angular positioning.
The lever is connected to the cam by means of a toothed element providing precise positioning while releasing the screw.
The washer eliminates the need for expensive items with female threadings and therefore the screw can be used directly on T-nuts for connection plates.
