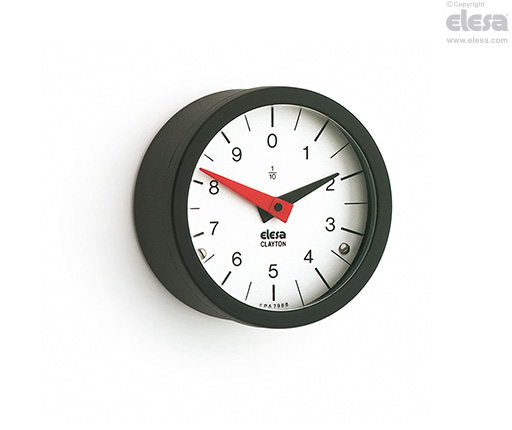

PA11 - PA12 Position indicators

positive drive, technopolymer




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Case

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Moulded-in spindle.

Bezel

Technopolymer. Moulded over the window.

Window

Transparent polyamide based (PA-T) technopolymer (practically unbreakable).

Resistant to solvents, oils, greases and other chemical agents (avoid contact with alcohol during cleaning operations).

Dial

Natural matte anodised aluminium.

Clockwise or anti-clockwise graduation, black colour.

Reading

The black pointer indicates the number of turns of the spindle from the start position (0); the red pointer indicates the fractions of turn.

Ratio

To choose the ratio see "Positive drive position indicators".

IP protection

The ultrasonic welding of the window to the case guarantees the complete sealing with IP 65 protection class, see table EN 60529.

General information

Features and applications

Digital-analogue positive drive indicators are suitable with spindles in any position.

To choose the handwheel see the table  ""Handwheels/knobs - possible assembly with indicators"".

Other executions

Special executions on request

  • Special dial with logo or customised graduations
  • Special ratios
  • Single pointer
