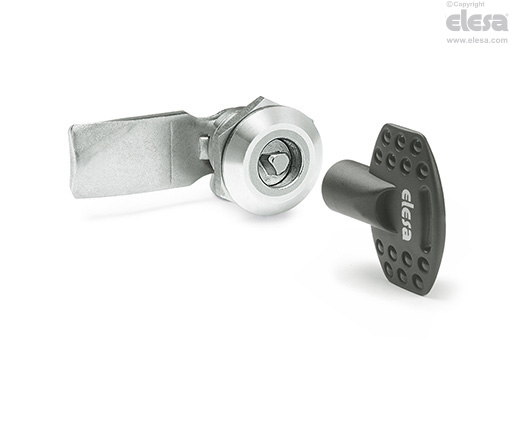

CQ.SST Lever latches

with key, stainless steel



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Stator and rotor

AISI 304 stainless steel.

Shaped closing lever

AISI 304 stainless steel, 4 mm thickness.

Nut

M22x1.5 AISI 304 stainless steel.

Packing ring

Transparent silicone rubber VMQ O-Ring, hardness 70 Shore A.

Internal gaskets

Silicone rubber VMQ O-Ring, hardness 70 Shore A.

Screw

M6x10 AISI 304 stainless steel.

Key

Polyamide based (PA) technopolymer.

Rotation

90°.

IP protection

IP66 and IP69K protection class.

Standard executions

  • CQ/A-SST: two-wing groove for key.
  • CQ/T-SST: triangular groove for key.
CQ.SST - Lever latches
Other executions

Special executions on request

  • Closing levers in other dimensions.
  • Latches and keys supplied separately.
  • Laser engravings on the latch front.
