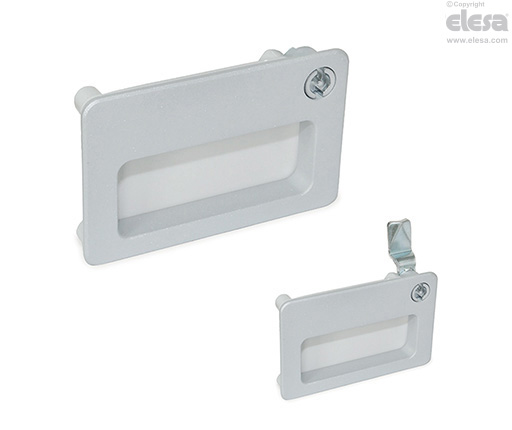

GN 115.10 Flush pull handles with lever latch

with key, zinc alloy




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Front body

Die-cast zinc alloy.

Zinc-plated steel groove for key, screw and elastic washer.

Rear body

ABS.

Standard executions

  • GN 115.10-DK-1: triangular groove for key, positioned to the left.
  • GN 115.10-DK-2: triangular groove for key, positioned to the right.
  • GN 115.10-VK7-1: square 7x7 groove for key, positioned to the left.
  • GN 115.10-VK7-2: square 7x7 groove for key, positioned to the right.
  • GN 115.10-VDE-1: groove for two-wing key, positioned to the left.
  • GN 115.10-VDE-2: groove for two-wing key, positioned to the right.

Index for handle colour:

  • SW: RAL 9005 black.
  • SR: RAL 9006 grey.
Accessories

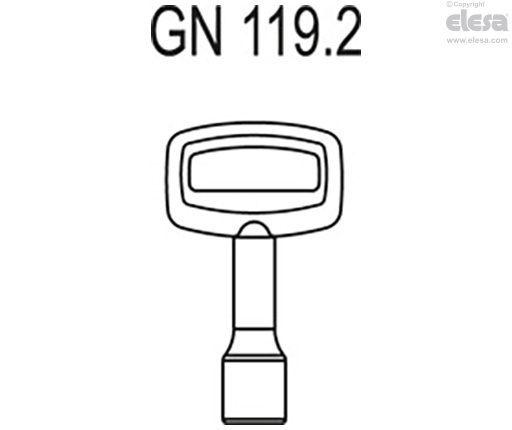

Keys  (to be ordered separately)

Die-cast zinc alloy with epoxy resin coating, RAL 9005 black colour, matte finish.

  • With triangular groove, GN 119.2-86-DK7-SW (code GN.38701).
  • With square 7X7 groove, GN 119.2-86-VK7-SW (code GN 38706).
  • With two-wing groove, GN 119.2-86-VDE5-SW (code GN.38711).
GN 115.10 - Flush pull handles with lever latch

Accessories on request (to be ordered separately)

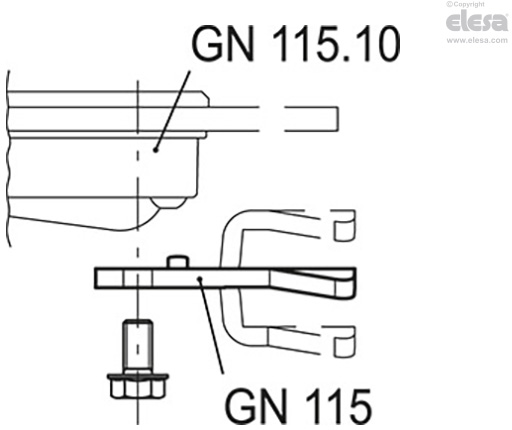

Closing lever GN 115, for distances of coupling from 4 to 50 mm.

Instructions of use

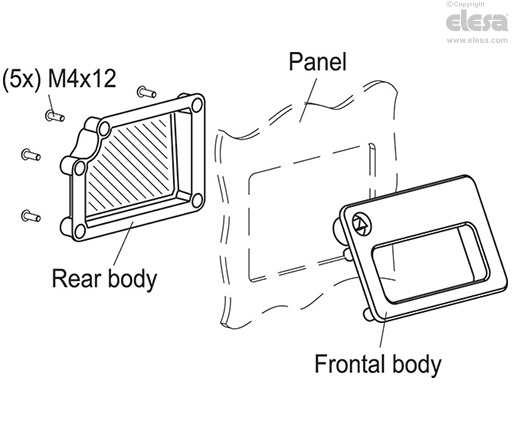

Assembly instructions

Assembly on sheet panels with a max thickness of 7 mm, by means of 5 zinc-plated steel M4x12 screws included in the supply.

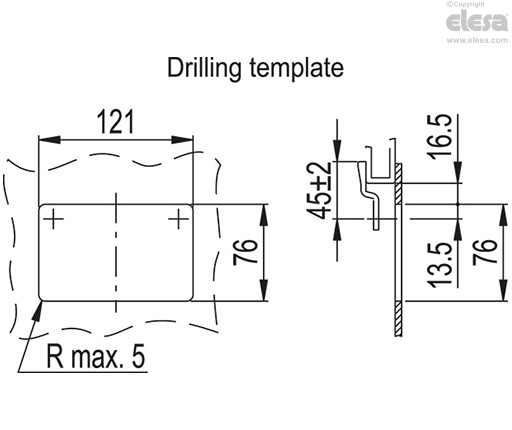

  • Drill the sheet panel according to the template dimensions reported.
  • Fit the frontal body of the handle in the panel seat.
  • Assemble the rear body on the back of the panel and press on the back until the complete fitting with the front body.
  • Fit by means of 5 threaded studs.
GN 115.10 - Flush pull handles with lever latch
GN 115.10 - Flush pull handles with lever latch
GN 115.10 - Flush pull handles with lever latch
