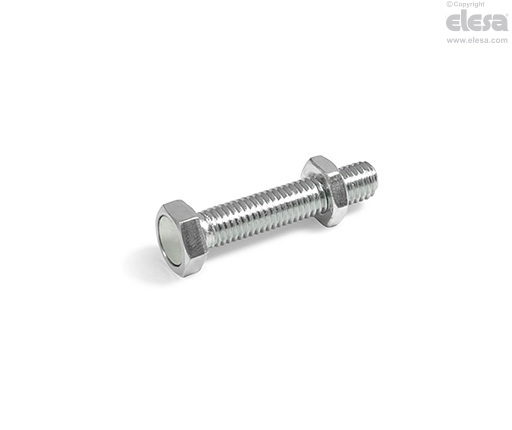

GN 251.6 Magnetic setting bolts

Steel




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Zinc-plated steel, class 5.8 (tensile strength 500 N/mm²).

Magnet

(NdFeB) Neodymium- iron-boron, for temperatures up to 80°C.

See Retaining magnets technical data.

Locking nut

Zinc-plated steel, class 04 (tensile strength 400 N/mm²).

General information

Features and applications

GN 251.6 grub screws with retaining magnet are shielded magnetic systems with high performances. They are generally used for fixation of parts to be machined. The locking nut can be used for a safe fixing of the screw after positioning.
