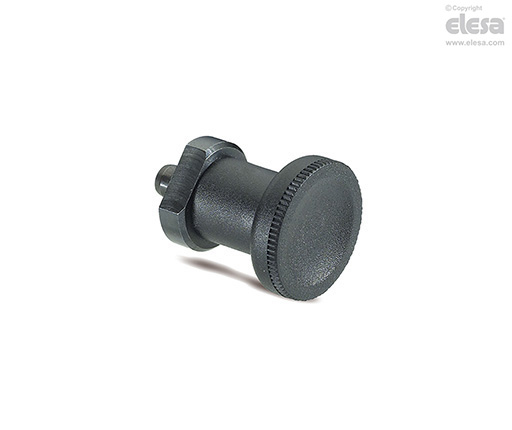

GN 607.4 Indexing Plungers
Fixing by means of welding, steel
Main specifications
Flanged body
Black-oxide steel.
Plunger
Hardened steel.
Knob
High-resilience polyamide based (PA) technopolymer, black colour, matte finish.
General information
Features and applications
GN 607.4 indexing plungers are designed for fixing by means of welding, in particular for applications on square-section steel profiles.

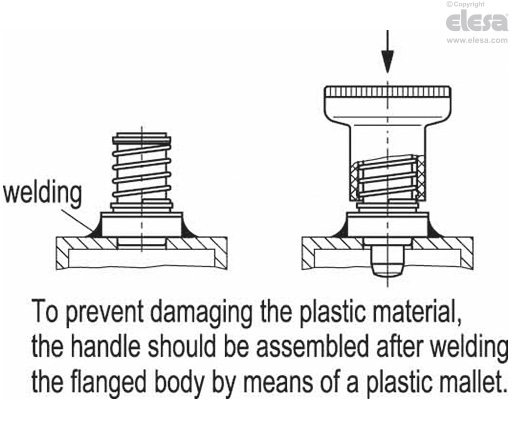

The knurled knob should be assembled to the flanged body after the welding operation to prevent damaging the plastic material.
