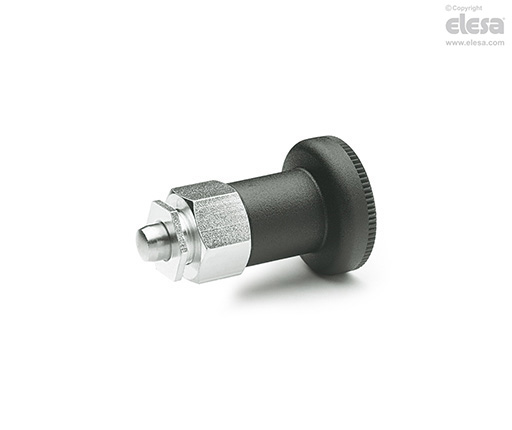

GN 607.2 Indexing Plungers
Steel
Main specifications
Threaded body
Zinc-plated steel.
Plunger
Nickel-plated AISI 303 stainless steel.
Centre bush
Zinc-plated steel.
Knob
High-resilience polyamide based (PA) technopolymer, black colour, matte finish.
General information
Features and applications

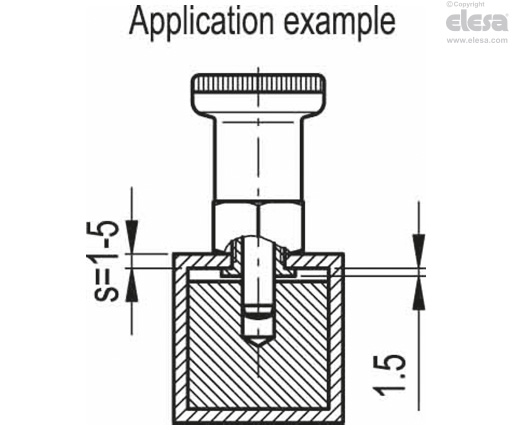

GN 607.2 indexing plungers can be assembled on thin section sheets or profiles (from 1 to 5 mm)
The plunger may not retract completely in its starting position according to the thickness of the sheet "s".
