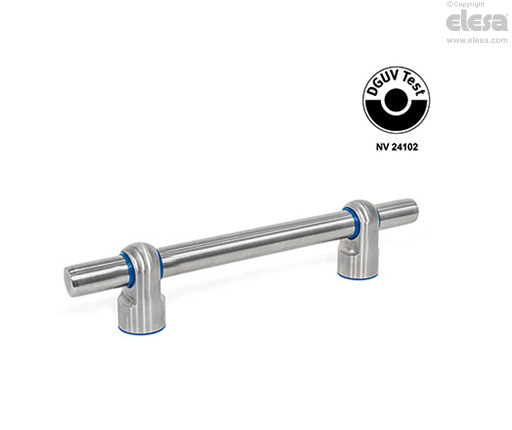

GN 3330 Tubular Handles

with movable handle shanks, stainless steel, Hygienic Design

Technical datasheet

Select item

Technical specifications

Scroll horizontally

Main specifications
General information
Accessories

Main specifications

Tube

Stainless Steel AISI 304 NI

Ground, matte finish (Ra < 0.8 μm) MT

End supports

Stainless Steel AISI 304

Matte finish (Ra < 0.8 µm)

Sealing ring and wiper

TPU T

Blue

Temperature resistant -20 °C to +110 °C

Hardness 95±5 Shore A

FDA compliant

Locking wedge

Brass

Grub screw

Stainless steel

General information

Features and applications

Tubular handles GN 3330 comply with the DGUV testing principles and are designed for use in hygienic areas. The sealed mounting surface enables fastening without dead spaces. The high quality finish as well as the non-concave geometry prevent adherence of dirt and facilitate cleaning.

The handle legs are loosely enclosed for fastening to the handle tube using the integrated clamping wedge during installation. The position of the handle legs can be adjusted as required, but must not be less than the minimum distance a, as the tubes may be undersized in the edge area.

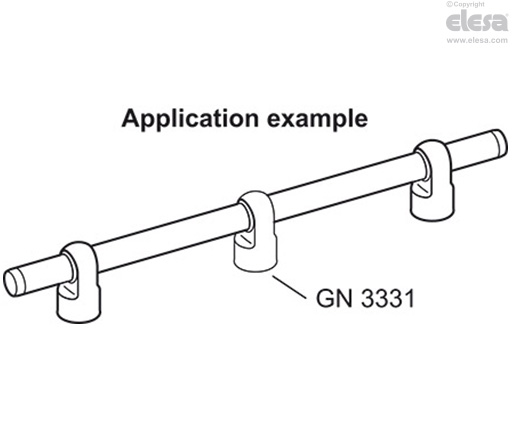

For large lengths or loads, additional handle legs can be added. These are available under standard part number GN 3331.
