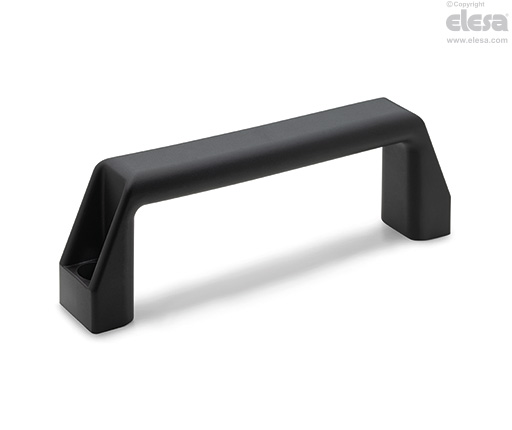

M.453-SEMI-S8 Bridge handles

According to SEMI-S8 guidelines, technopolymer




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard execution

Pass-through holes for cylindrical-head screws with hexagon socket.

Features and applications

The M.453-SEMI-S8 handle, with design based on the M.443 bridge handle, was developed for dimensions following the SEMI-S8 standard.

General information

Technical data

Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
