IR.302 Fold-away handles

Duroplast



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Phenolic based (PF) Duroplast handle, black colour, glossy finish.

Standard executions

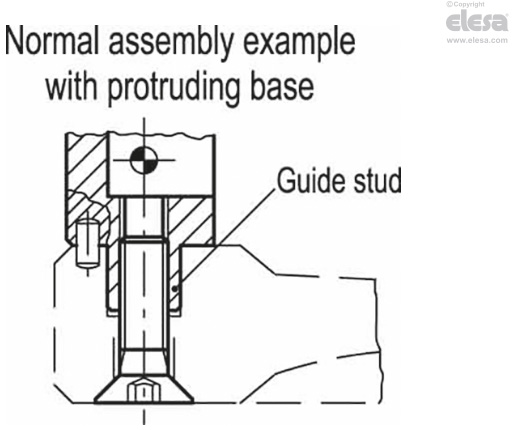

  • IR.302: black-oxide steel double guide pin, sintered and oxidised steel base with guide stud, black-oxide steel screw.
  • IR.302-SST: AISI 303 stainless steel double guide pin, sintered AISI 303 stainless steel base with guide stud, AISI 303 stainless steel screw.
General information

Features and applications

Handle pivots freely during operation: a system of coaxial bushings compensates return spring load.

This series of fold-away handles has been designed for all those applications for which, owing to lack of space or for safety reasons, the handle must be folded-away once the operation has been completed.

IR.302 - Fold-away handles
