GN 274.1 Sensor Holders

for linear actuators, aluminium



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Aluminium, epoxy resin coating, RAL 9005 black colour, matte finish.

AISI 304 stainless steel screw and nut.

Standard executions

  • GN 274.1-OZ: without centering ring.
  • GN 274.1-MZ: with embossed centering ring.
  • GN 274.1-AV: with embossed toothing.
  • GN 274.1-IV: with flush toothing.

Hole d1:

  • B: without sliding bushing.
  • G: with polyamide based (PA) or polytetrafluoroethylene based (PTFE) technopolymer sliding bushing.

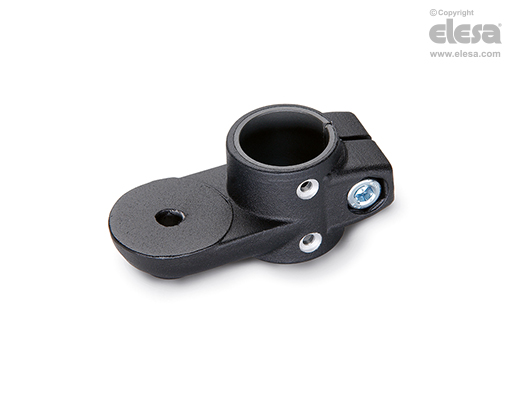

GN 274.1 - Pivoting connecting clamps
General information

Features and applications

GN 274.1 connecting clamps can normally be matched with the linear actuators.

By clamping the guide hole d1 it is possible to adjust the actuator positioning and to lock the slider after having set up the final position.

The clamping screw d3 may be replaced by clamping kit GN 911.
