SFW-P Breather caps

double valve, with splash guard, technopolymer




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Polyamide based (PA) technopolymer.

  • Cover: RAL 2004 orange, semi-matte finish, with graphic symbol "valve".
  • Threaded fitting with splash guard: black, semi-matte finish.

Packing ring

NBR synthetic rubber.

Overpressure valve

Technopolymer with NBR synthetic rubber O-ring and stainless steel spring.

Set at around 0.350 bar.

Suction valve

Technopolymer sealing disk in NBR synthetic rubber and stainless steel spring.

Set at around 0.030 bar.

Air filter

Thermal-bonded polyester (TBP) filter with low pressure drop and high dust holding capacity. Expected filtration class ISO 16890-1 ISO Rating coarse 75%, EN 779:2012 Class G4, air filtration 10 µ.

Maximum continuous working temperature

100°C.

General information

Features

The SFW-P cap maintains a reservoir of air under pressure above the oil level within the limits established in the design stage to avoid deformation of the tank walls. Benefits:

  • reduces reservoir air volume intake keeping clean oil and filter;
  • it improves suction pump action under working conditions reducing cavitation phenomenon;
  • prevents fluid leakage when the system is part of a mobile unit;
  • it reduces foam in fluid.

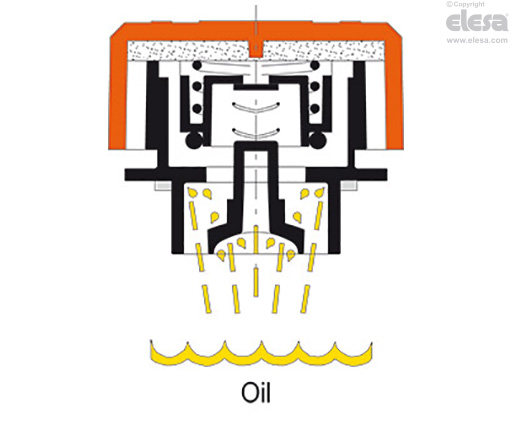

SFW-P caps are made with a special internal geometry which stops the leakage of the fluid to the outside.

Technical data

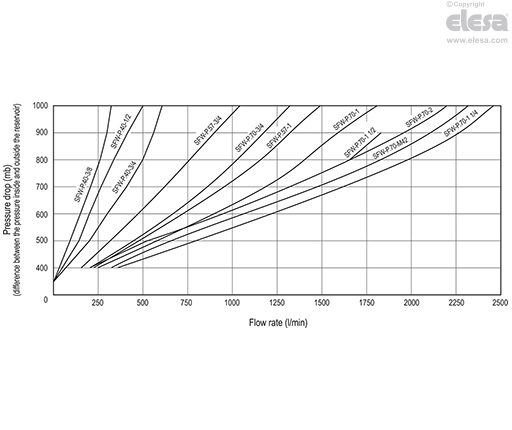

Air flow rate for the different executions of breather caps can be obtained from the diagram on the basis of the difference of air pressure inside and outside the reservoir.

SFW-P - Breather caps
SFW-P - Breather caps

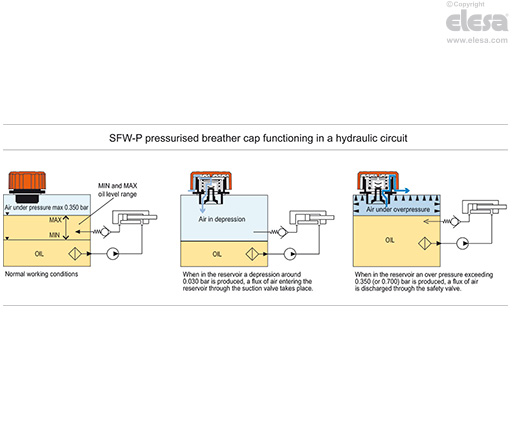

Working in an hydraulic circuit
SFW-P - Breather caps
Other executions

Special executions on request

  • Black colour cover.
  • Overpressure valve set at 0.700 bar.
  • Threaded connector also with NPT thread (National Taper Pipe Thread - ANSI-ASME B1-20, (SFW.70-3/4-NPT).
